TFT Display 0.96/1.3/1.44/1.8 Inch IPS TN 7P SPI HD 65K Full Color LCD

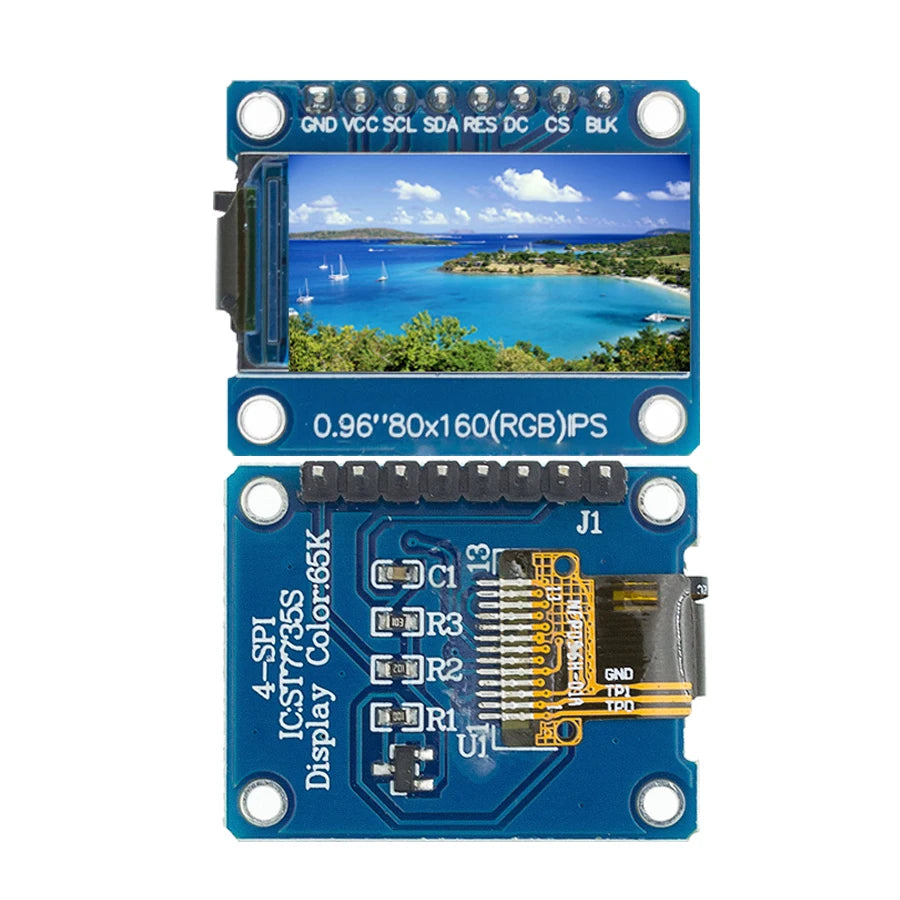

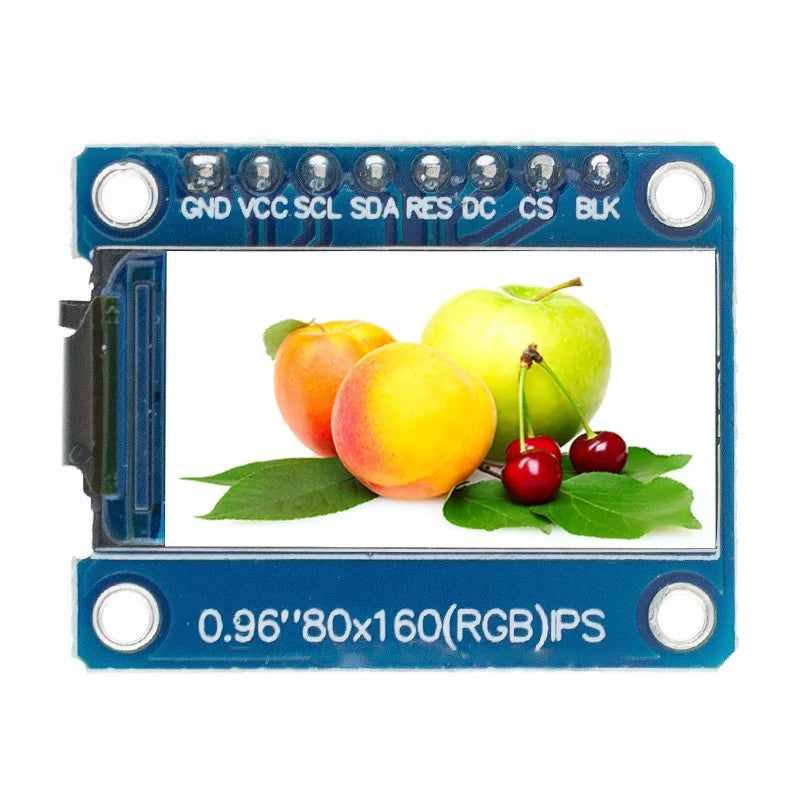

0.96 inches

Control chip:ST7735

Display area: 10.8X21696(mm)

Working voltage: 3.3V

Physical ruler: 24*30mm

Interface type: SPI interface

Number of pins: 8PIN

Display color: 65K full color

Working temperature: -20℃~70℃

Material: new IPs color screen, the color is more vivid than ordinary TET LCD

Split rate: 80*160 display direction can be adjusted, both horizontal and vertical screens

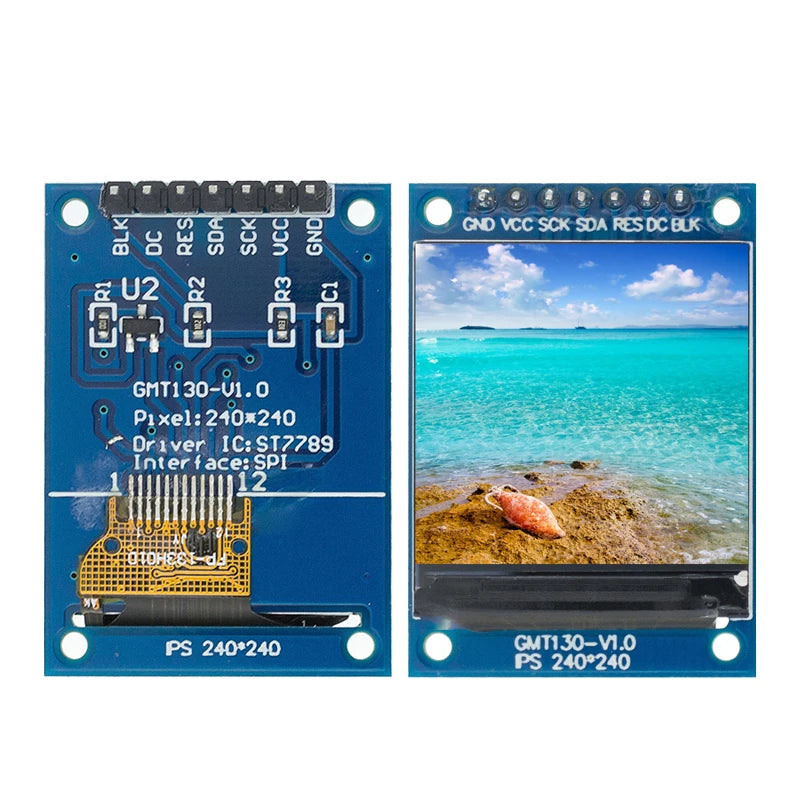

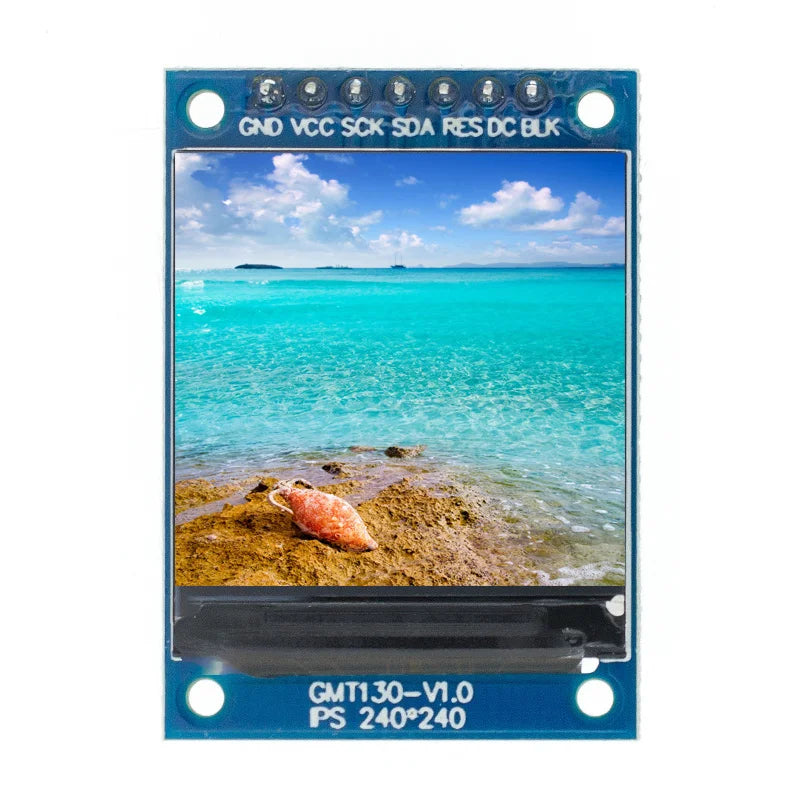

1.3 inches

Display area: 23.4X23.4mm

Control chip: ST7789

Physical size: 27.78×39.22mm

Viewing direction: full viewing angle

Interface type: 4-wire SP interface

Working temperature: -20℃~70C

Number of pins: 7PN

Material: HD Ps color screen is more vivid than ordinary TD

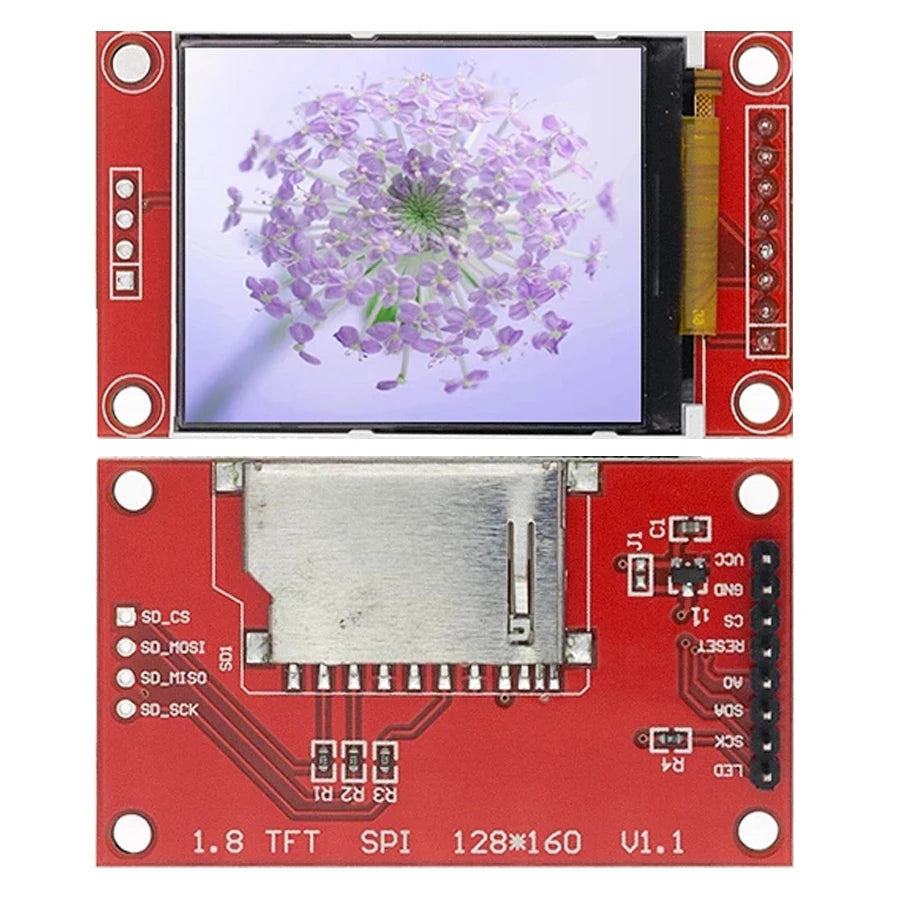

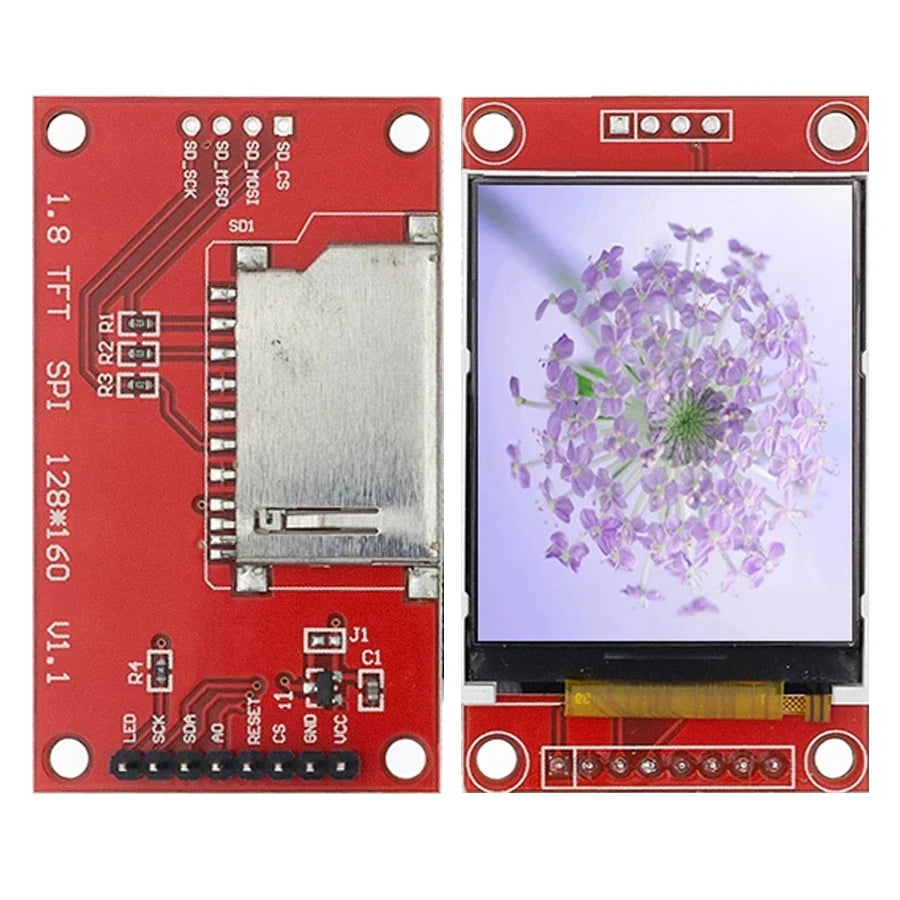

1.8-inches

Control chip:ST7735

1.8-inch color screen,support 65K color display,display rich colors

128X160 resolution, clear display

Using the SPI serial bus, it only takes a few IOs to illuminate the display

With SD card slot for convenient function expansion

Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms

Military-grade process standards, long-term stable work

Provide underlying driver technical support
