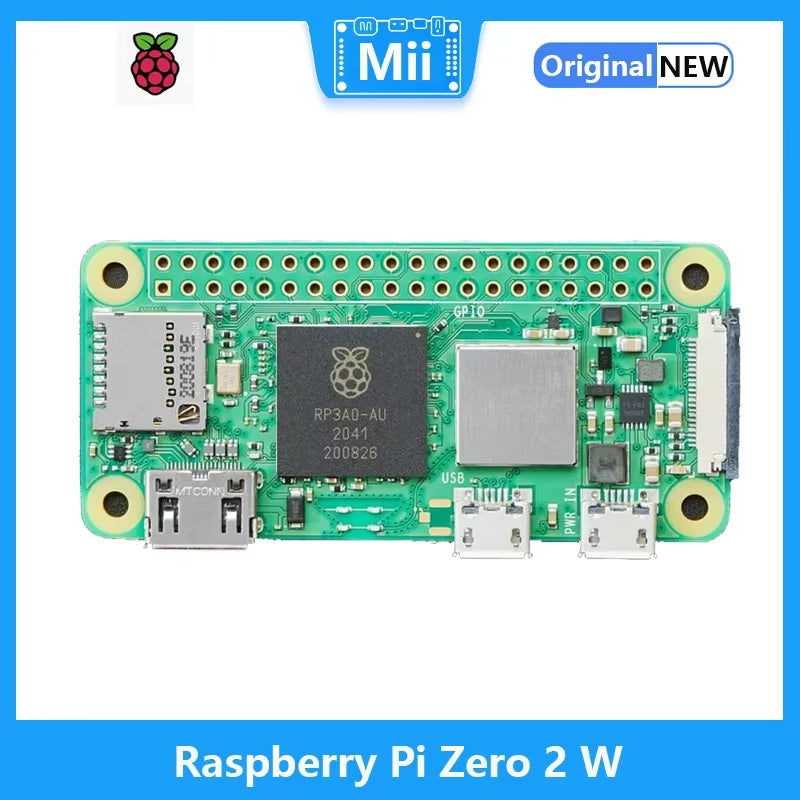

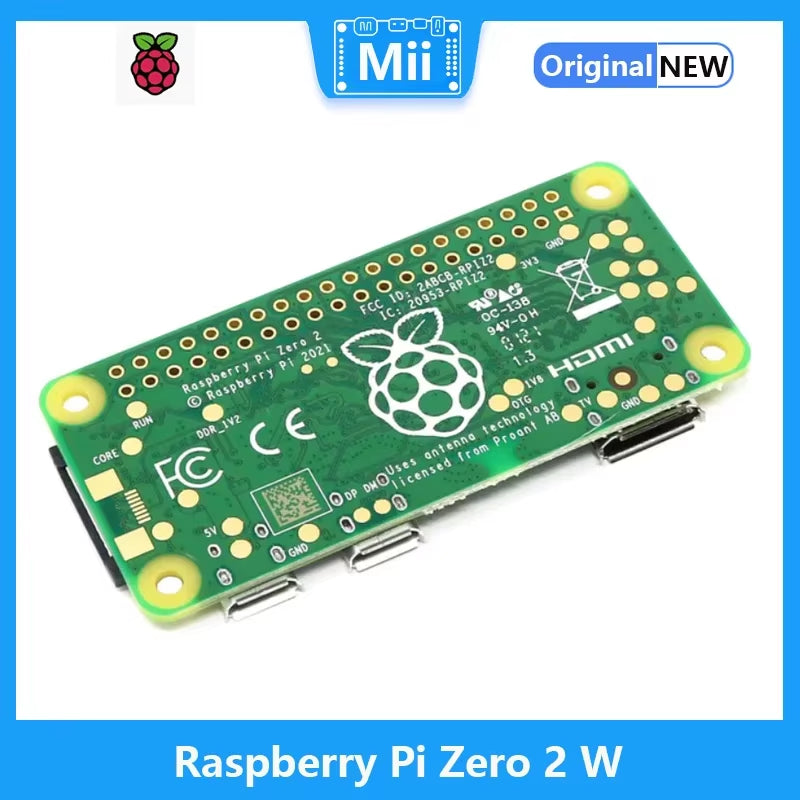

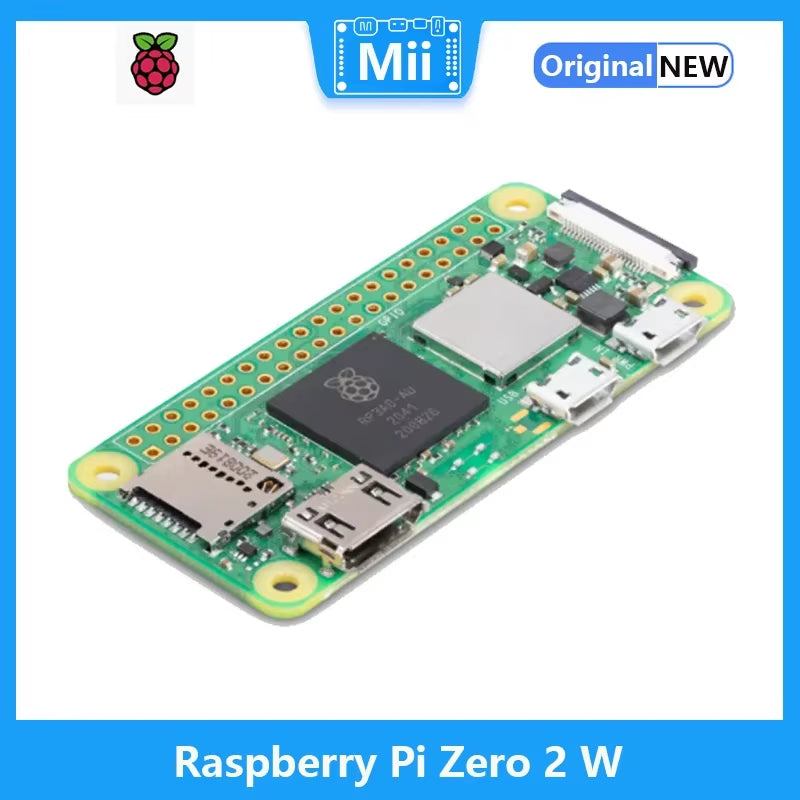

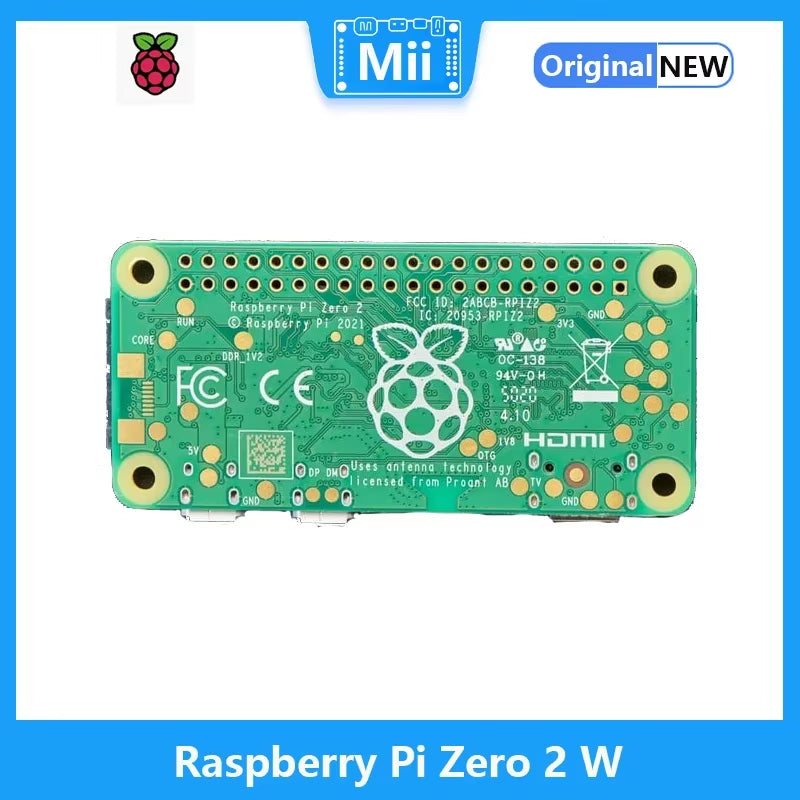

Raspberry Pi Zero 2 W Development Board
Raspberry Pi Zero 2 W Development Board
Couldn't load pickup availability
Description
The Raspberry Pi Zero 2 W is the successor of the Raspberry Pi Zero W single-board computer, designed to offer higher performance due to its enhanced specifications. The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance, and five times more multi-threaded performance, than the original single-core Raspberry Pi Zero.
What is the Raspberry Pi Zero 2 W?
Building on the success of the current Zero family, Raspberry Pi Zero 2 W is built around a Raspberry Pi-designed System-in-Package, which integrates the BCM2710A1 die used in Raspberry Pi 3 with 512MB of RAM. Raspberry Pi Zero 2 W is footprint-compatible with earlier members of the Zero family.
Why should you choose the Raspberry Pi Zero 2 W?
The Raspberry Pi Zero 2 W shares the same form factor as the original Raspberry Pi Zero, and therefore Raspberry Pi Zero 2 W fits inside most existing Raspberry Pi Zero cases.
The Raspberry Pi Zero 2 W is a practical product in the most affordable range of single-board computers produced by Raspberry Pi.
The upgraded processor provides Raspberry Pi Zero 2 W with 40% more single-threaded performance and five times more multi-threaded performance than the original single-core Raspberry Pi Zero.
Key features of the Raspberry Pi Zero 2W
The Raspberry Pi Zero 2 W board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz.

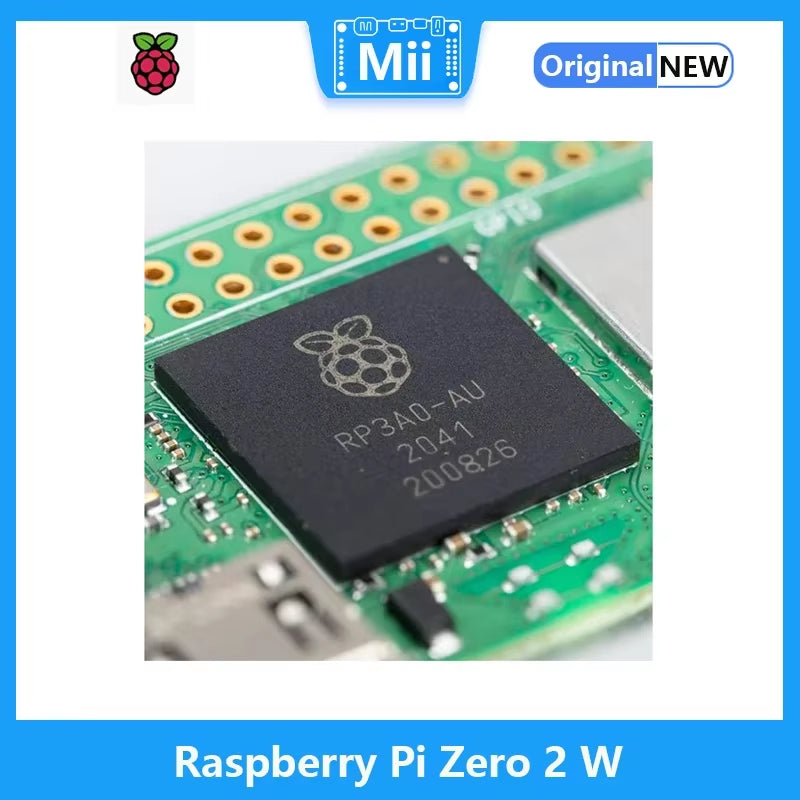

A Raspberry Pi RP3A0 system-in-package (SiP) is at its heart, integrating a Broadcom BCM2710A1 die with 512MB of LPDDR2 SDRAM.
Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, along with support for Bluetooth Low Energy (BLE) and modular compliance certification.

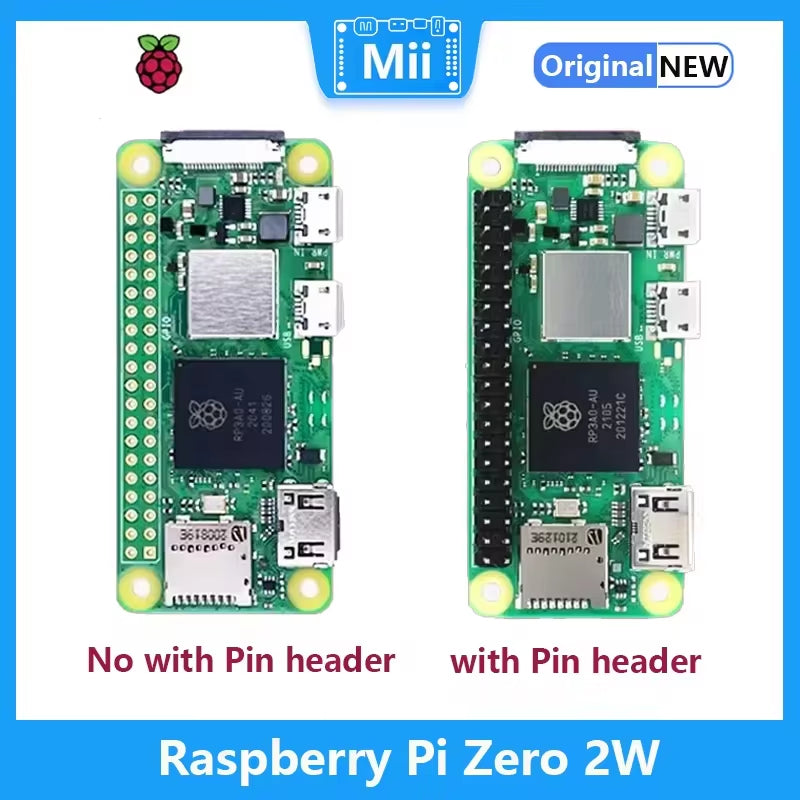

The board has a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header.
It is powered via a micro USB socket.
Video output is via a mini HDMI port; composite video output can easily be made available via test points if needed.
