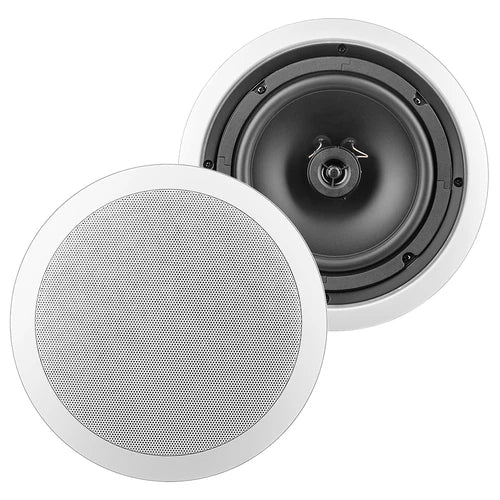

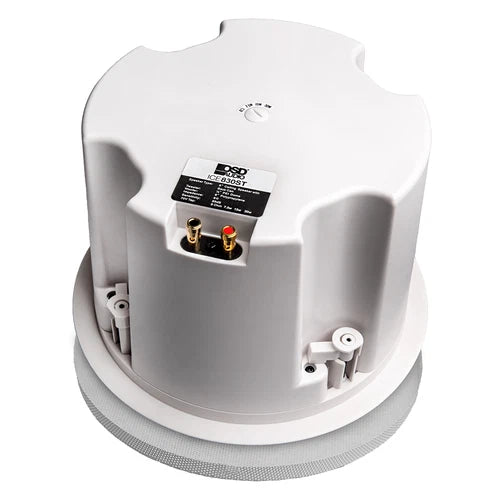

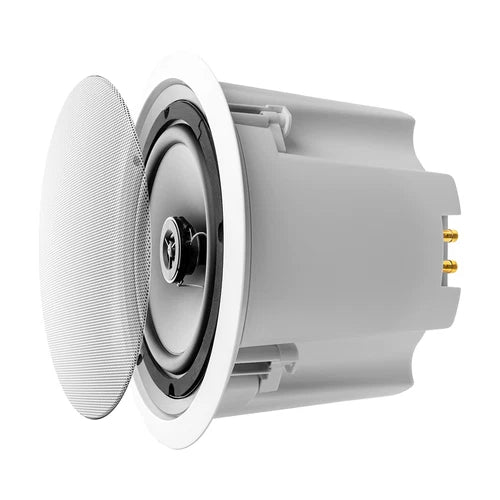

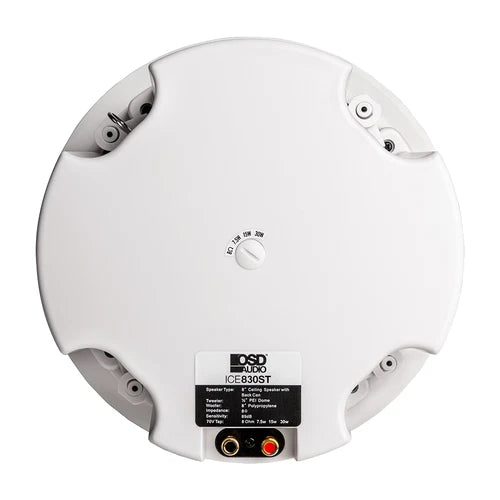

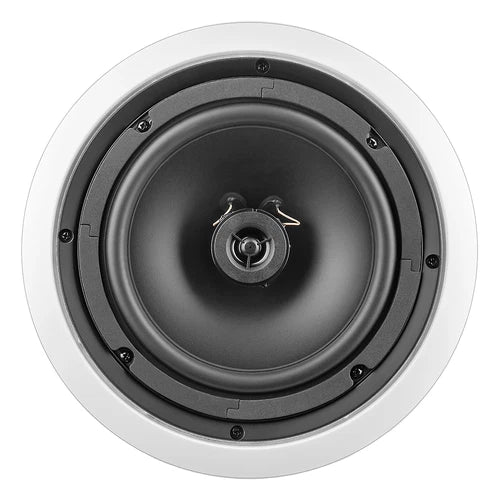

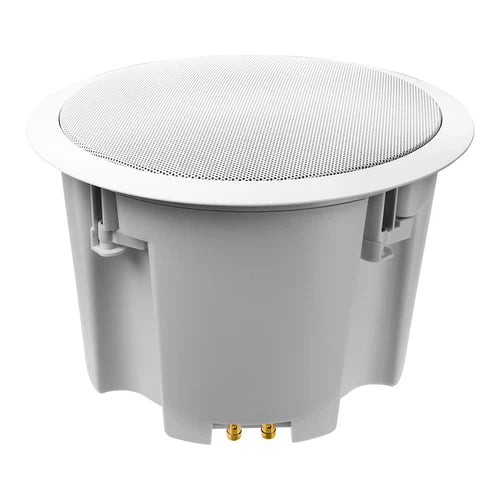

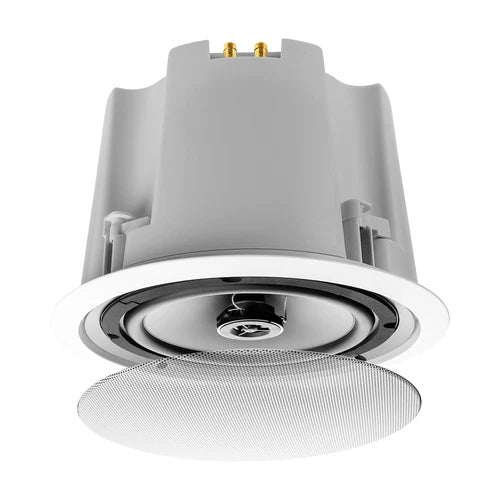

OSD ICE830ST 8" 2-Way 70V Commercial In-Ceiling Speaker w/ Backcan, Single
OSD ICE830ST 8" 2-Way 70V Commercial In-Ceiling Speaker w/ Backcan, Single
Regular price
$283.99 USD
Regular price
$425.99 USD
Sale price
$283.99 USD
Unit price
/
per
Couldn't load pickup availability
The ICE830ST is a high-end commercial speaker that will come through with excellent sound quality even in crowded, noisy environments. Not only does this speaker offer high power handling, the 8" polypropylene woofer and pivoting tweeter configuration is similar to home theater speakers where sound clarity is fine tuned. If you want "beyond good" sound quality and a speaker that rises above the clamor and noise, the ICE830ST will be an excellent choice.
This ceiling speaker with backcan is perfect for a commercial application. It has built in 70V transformer but also has 8 ohm setting so you can use for your regular 8 ohm application. It is very easy to remove the grill to adjust the 70V setting. The one piece grill covers the complete speaker for better custom looks. Sophisticated crossover delivers better bass, clarity and clean highs.
Specifications:
- Speaker Type: 8" 70V Commercial Ceiling Speaker with Back Can
- Woofer: 8" Polypropylene Cone with Rubber Surround
- Tweeter: 0.5" PEI Dome
- Frequency Response: 45Hz-22kHz +/- 3dB
- Power Handling: 2.5 - 60W
- Sensitivity: 89 dB
- Impedance: 8 Ohms/ 70V
- Transformer: Dual 70V/8Ohm
- Wattage Taps: 30W, 15W, 7.5W
- Diameter & Depth: 11" x 7"
- Cutout Diameter: 9.75"
- Spray Paintable Steel Grille Included
- Installer-friendly Dog Ear Installation Brackets
- Sold As: Single
- Warranty: 10 Years
How Does this Speaker Mount in the Ceiling?
Customers often ask us if they need special installation mounting brackets on their OSD ceiling speakers. The answer is no and here’s why. All our in-ceiling speakers feature a dog leg (L-shaped) mounting system that is part of the frame. Before you install the speakers, remove the grille and you’ll see several the mounting screws near the front frame. These screws need to be loosened to activate the dog leg clamps. Use a screwdriver to loosen (turn to the left) these screws and the clamp will come loose. When the speaker is in position in the ceiling, tighten (turn to the right) the screw and the speaker will be secured to the ceiling.
