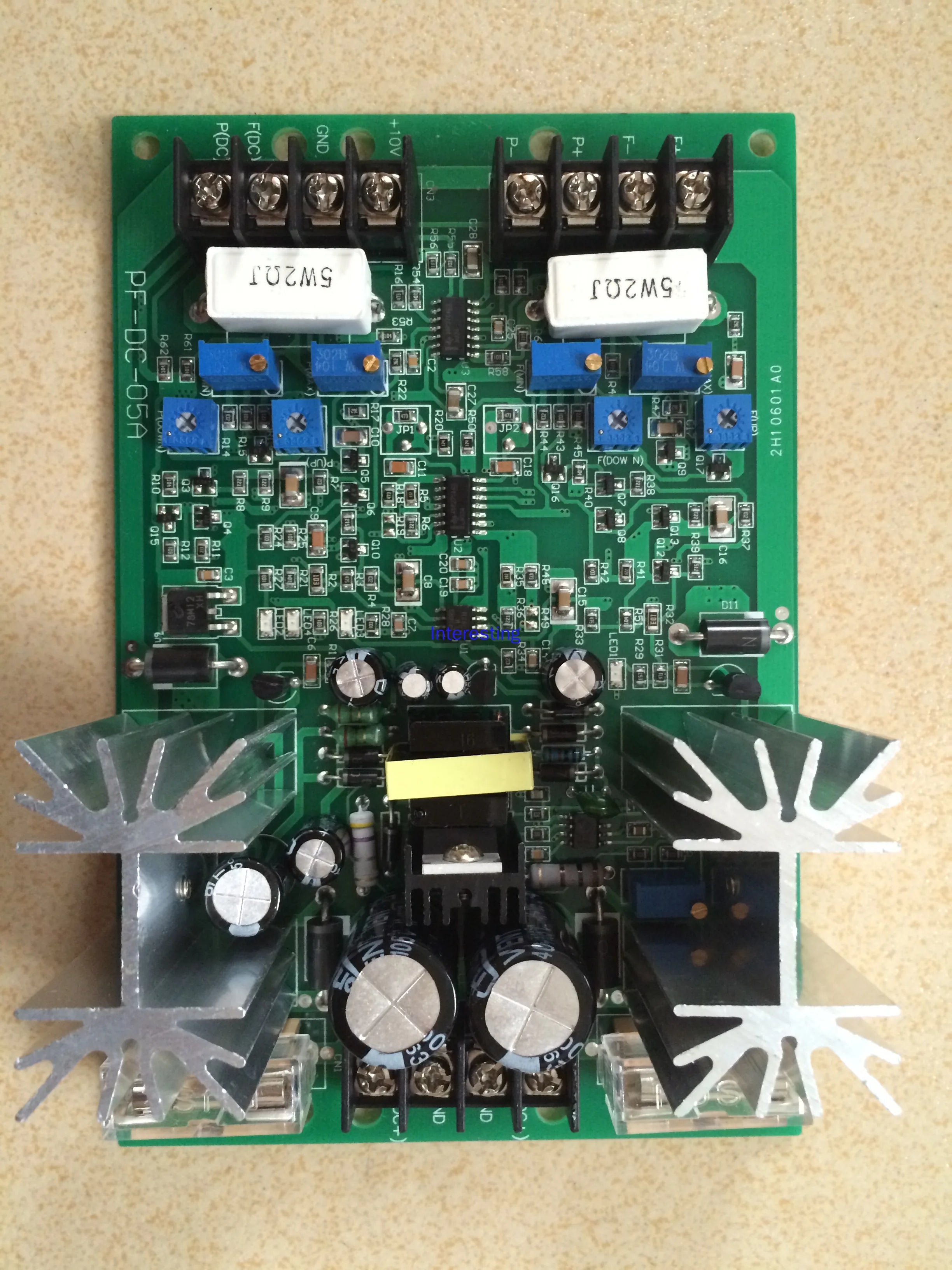

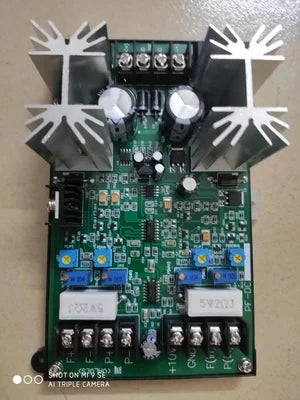

Dual Analog Proportional Valve Amplifier Plate Solenoid Proportional Valve Controller
Dual Analog Proportional Valve Amplifier Plate Solenoid Proportional Valve Controller
Regular price
$59.48 USD
Regular price
$89.22 USD
Sale price
$59.48 USD
Unit price
/
per
Couldn't load pickup availability
modname=ckeditor
Power amplifier for flow and pressure control valve
Main technical parameters:
Power supply: DC (DC) 24/48V
Maximum output power: 24/48W
Maximum output current: 1050MA
Response speed: 0.2-5s
Load impedance: 10/40 Ω (when the load is 40 Ω,
the input voltage can only be 48V, and can only be connected between F (DC+) and GND)
Control signal input: 0~10VDC
FUSE：3A/250V
Flutter frequency: 0-500HZ
Ambient temperature: 0~65 ℃
Temperature drift (maximum): 0.3mA/C
Applicable control type
Control all direct-acting, pilot and overflow proportional pressure flow valves without electric position feedback.
It has a ramp generator, which can adjust the rise and fall time separately, and can also adjust the current upper limit/
Lower limit setting. Power supply wrong pole protection function. The products are all made by SMD patch technology, with small size
Strong interference, good quality and low price.
English description of wiring terminal
P (DC+) - pressure input power DC24V
F (DC+) - flow input power DC24V or DC48V
P=pressure GND -- input power supply common terminal
F=flow P+- pressure valve positive
DC=DC P - negative pressure valve
F+- flow valve positive
F - negative flow valve
12V - auxiliary power supply for variable resistance
GND - control common point
P(vin) ─Pressure input signal point
F (vin) - flow input signal point
Potentiometer definition on the circuit board P (MAX) - pressure maximum adjustment
P (MIN) - pressure minimum value adjustment (factory adjusted, no need to adjust again)
P (UP) - pressure ramp rise time (factory adjusted to the minimum value)
P (DOWN) - pressure ramp down time (factory adjusted to the minimum value)
F (UP) - flow ramp rise time (factory adjusted to the minimum value)
F (DOWN) - flow ramp down time (factory adjusted to the minimum value)
F (MAX) - maximum flow adjustment
F (MIN) - minimum flow adjustment (it has been adjusted before leaving the factory, and no further adjustment is required)
