WIFI Relay Controller Module DC 5V 8V-80V ESP8266 Wireless Controller Module ESP-12F for IOT Smart Home APP

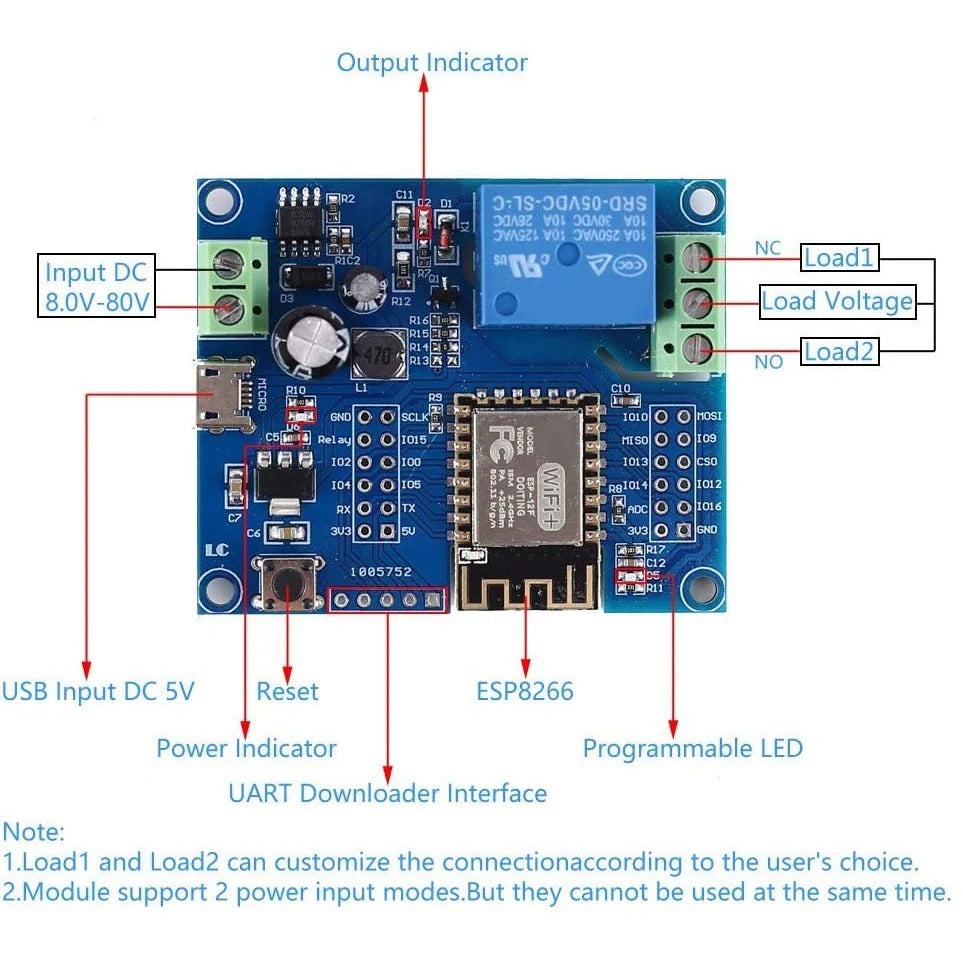

LC-Relay-ESP12-1R-D8 single way relay development board carry on ESP-12F WiFi module I/O port is fully extracted, support DC8-80V/USB 5V and other power supply methods. Supply Arduino development environment reference code, suitable for ESP8266 secondary develop learning, smart home wireless control and other occasions.
Onboard mature and stable ESP-12F WiFi module ,High capacity4M Byte Flash.
Reserve GPIO for ESP-12F. Reserve UART firmware update interface.
Onboard WiFi module RST reset button. Onboard 1 channel 5V relay.
color: blue
Material: PCB
Model: LC-Relay-ESP12-1R-D8
Work Voltage:DC8-80V/USB5V
WIFI IC: ESP8266
Communication Protocol:UART
Load voltatge:AC 250V or DC 30V(Max)
Load current:10A(Max)
Work Temperature:-25?~85?
Work Humidity:5%~95%RH

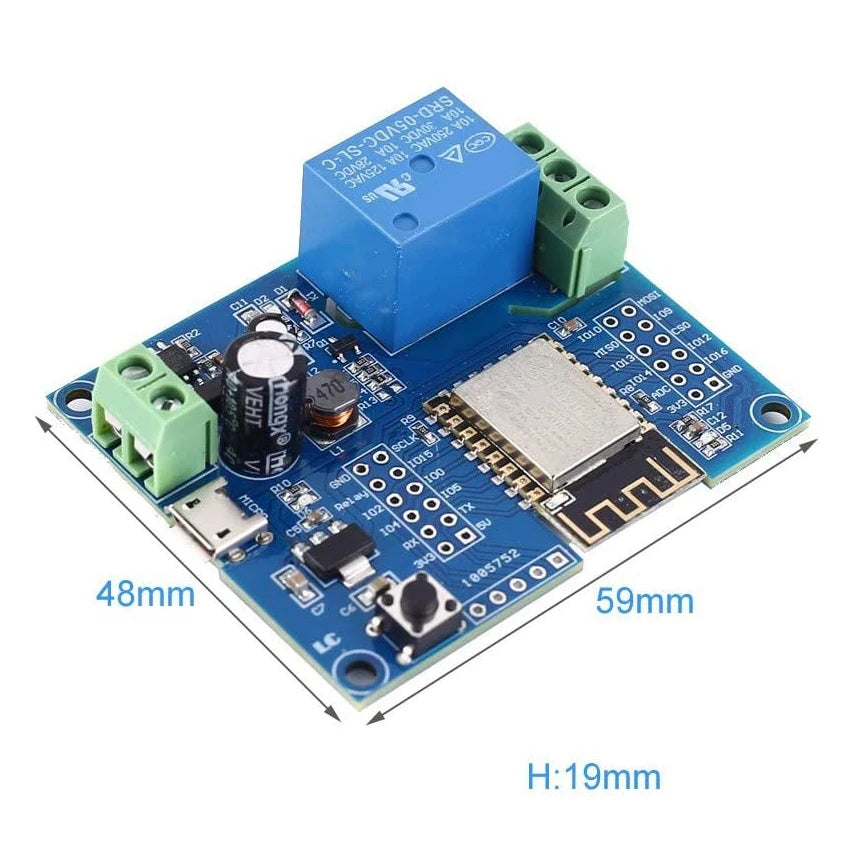

Size:59*48*19mm

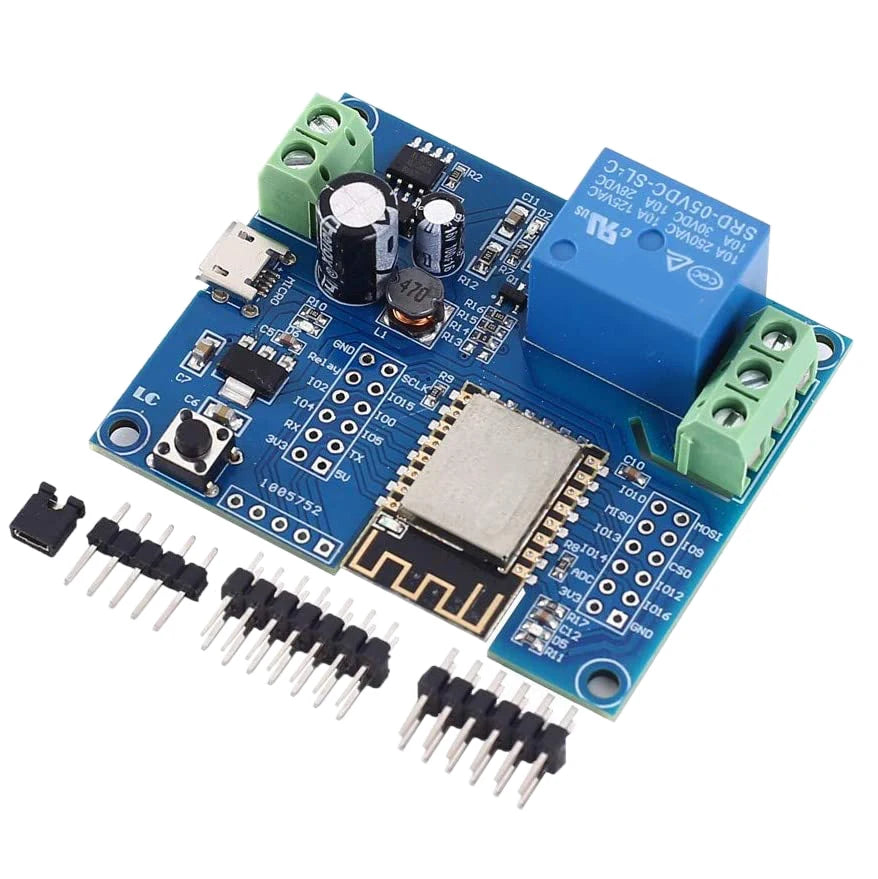

Package:
1pcs WIFI Relay Switch Module
1pcs 2*7Pin 2.54mm Male Pin
1pcs 2*6Pin 2.54mm Male Pin
1pcs 5Pin 2.54mm Male Pin
1pcs 2.54mm Jump Cap
Only the above package content, other products are not included.
